Broadcast
KRS Broadcast supply high quality Outside Broadcast Solutions across the UK and Europe. Our Outside Broadcast facilities, Mobile Fly Away and Livestreaming Solutions allow you to connect with your audience anywhere.
As part of the KRS Group, KRS Broadcast is backed up by an industry leading portfolio of equipment, logistical support and staffing - which means their capacity and capability is broader than our competitors.
With an unparalleled "in house" equipment portfolio combined with partnerships with expert equipment hire houses we can deliver all your requirements.

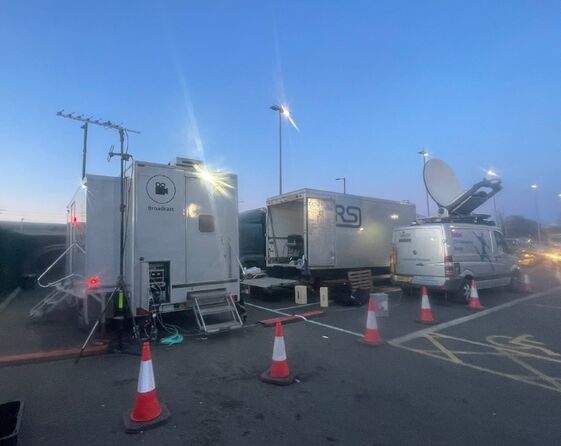

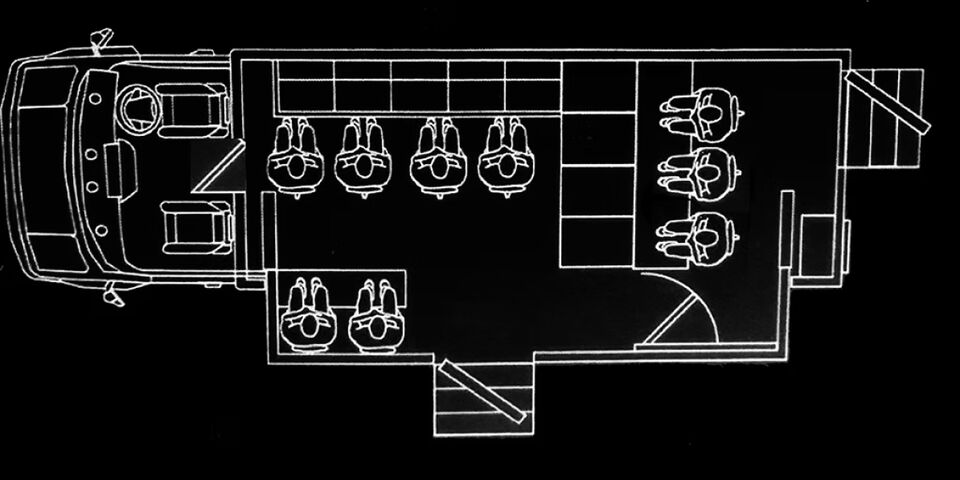

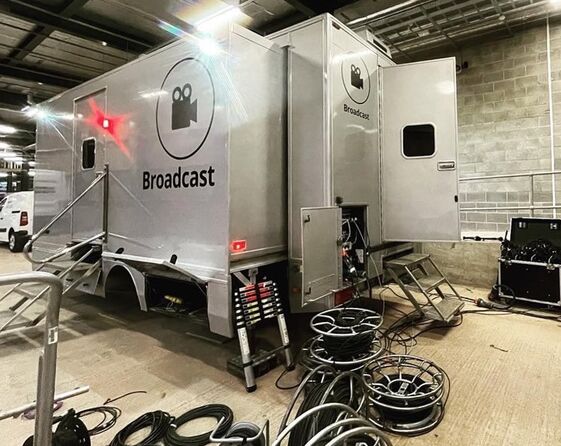

OB1 is a compact 7.5T expanding unit which allows access into some of the more restrictive venues. While externally compact, the unit has plenty of space inside for all the usual tech requirements and personnel.
Standard configuration is for 8 racked cameras with a 40 input 4K capable Switcher.
Specifications
Vehicle Body
7.5T Rigid, Expanding

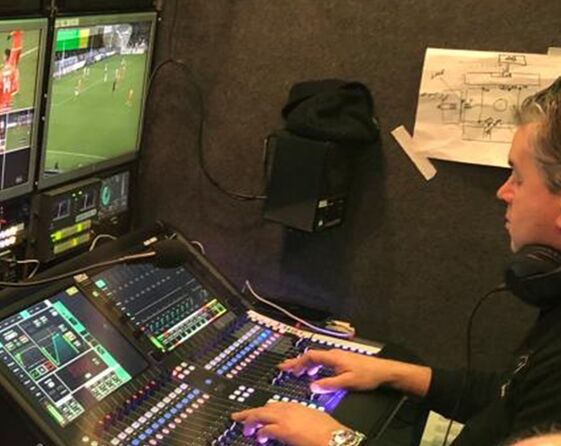

Audio Mixing Console

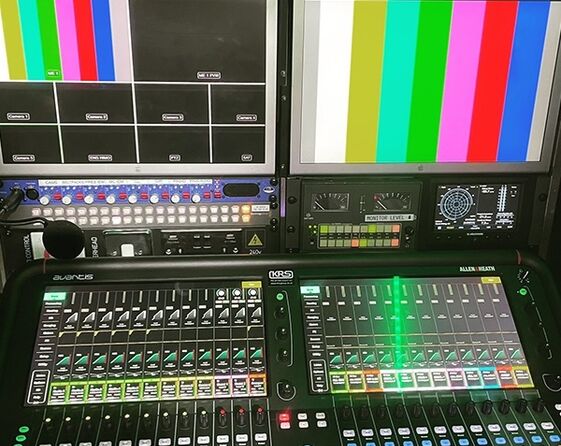

Allen & Heath Avantis digital Audio Console - 64 channel., DANTE Enabled with Stageboxes

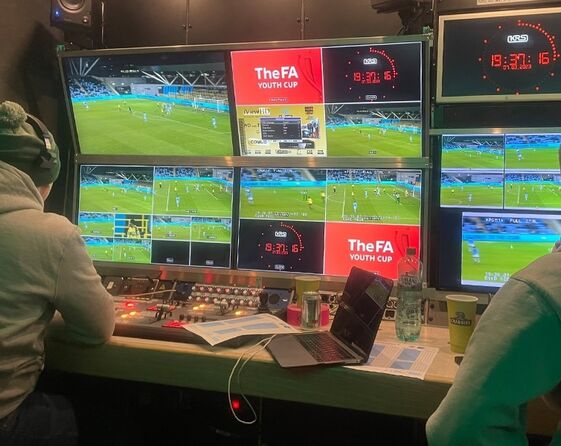

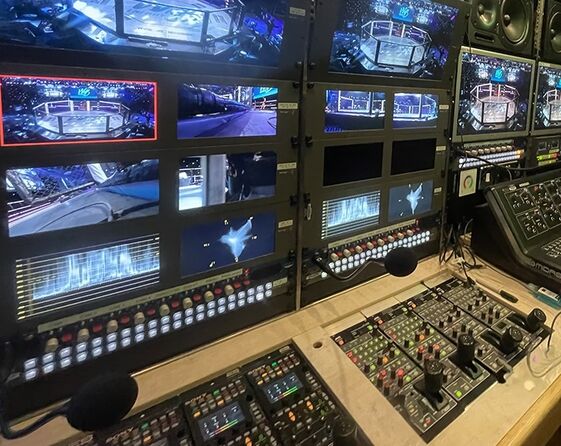

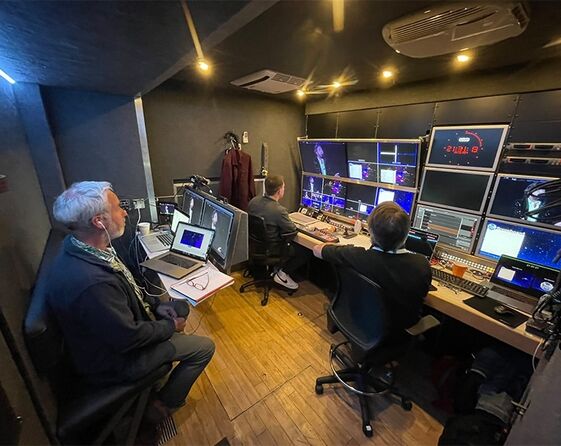

Production Area Monitoring
- Vision Mix: 4x 32" Configurable Multiview
- VT: 1x50" LCD with Multiview
- Producer/GFX (Rear Desk): 1x50" LCD Configurable Multiview

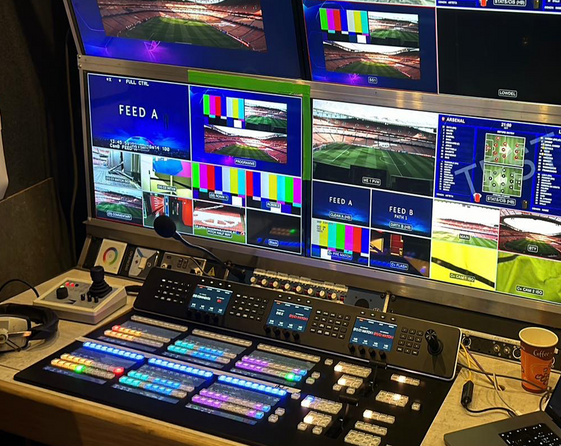

Vision Mixer
- 4ME - 40 Input Multiformat
Replay VT
- Capable of up to 2x EVS ChannelMAX Servers
- 4x BMD Hyperdeck

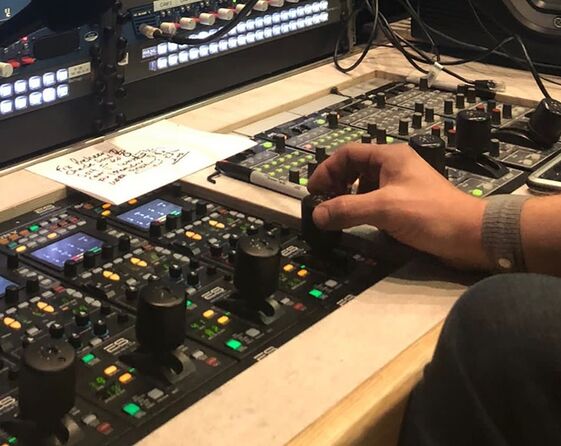

Camera Control & Engineering
2x CCU/Vision Positions with full scopes & monitoring
Air Conditioning
- 2x Aircon/Heat Pump Units in Production
- 1x Aircon/Heat Pump Unit in Audio/Engineering
Vision Router
- 40x40 - Main Router
- 16x16 - Engineering Router
- 40x40 - VT Router
Communications Matrix
- CTP Systems Dante System
- 8 or 16 Key panels at each position
- Dante Commentary Systems
- 2x Duplex UHF Systems
- 1x GSM TBU
Audio Control
- Active Studio Monitors
- Dante Integrated Backbone
- Instant Replay Audio Playback
- Qlab Audio Playback
- Standard configuration - 2x Embedder & 2x De-Embedder (8ch)

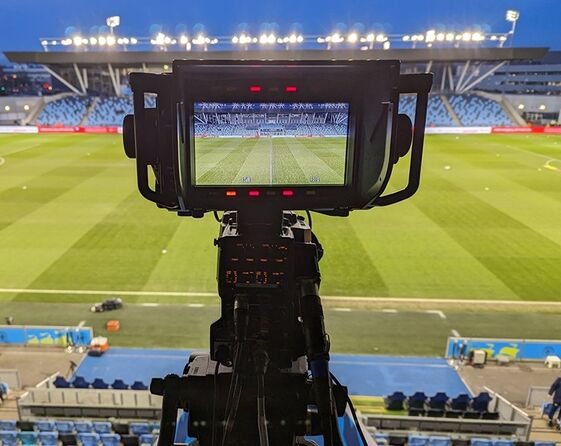

Cameras
Capable of up to 8 fully racked cameras plus minicams & PTZ options
Sony HDC-1500 as standard with a wide selection of Lens'
Q-Ball, Panasonic PTZ & BMC Mini Cams
Power
- 63A Single Phase - Tech Power & AC
- 16A Outlet on Tailboard
Graphics
On board Basic GFX Solution - Single Channel Key & Fill
Encoders & Connectivity
- On Board 8ch V-Mix Machine
- LiveU Solo Encoder (4 modems)
- Starlink Satellite Internet
